LAN wiring cheat sheet for mobile phone

rj45 Bit of hardware for today’s post. Inspired by wasting my morning on discovering that Sony notebook doesn’t play well with cross-wired wall sockets. :)

I don’t deal with networks often so I never remember wiring for connectors… Especially I don’t remember that when I urgently need it. Carrying paper cheat sheets with rest of garbage IT-tools is not very nice solution so I decided to cook wiring cheat sheet for my phone.

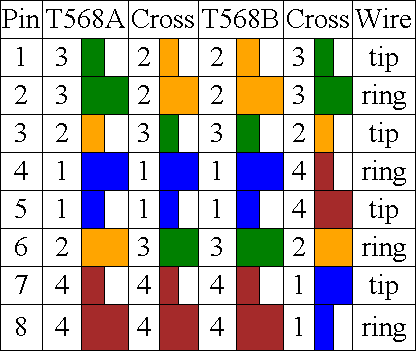

Looks like this :

lan_cheatsheet

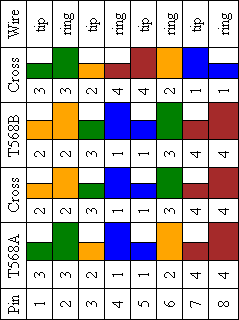

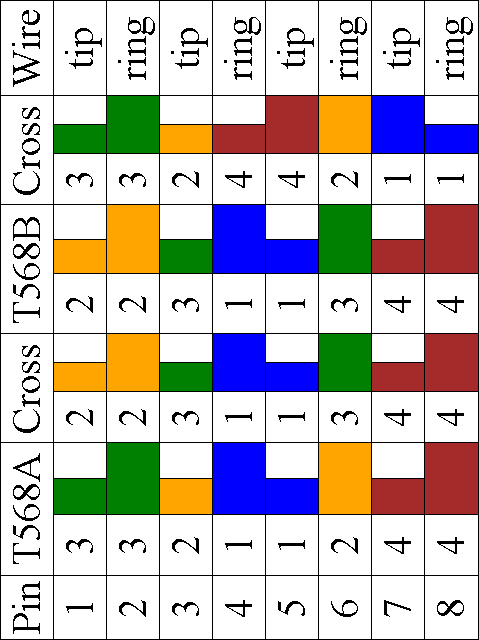

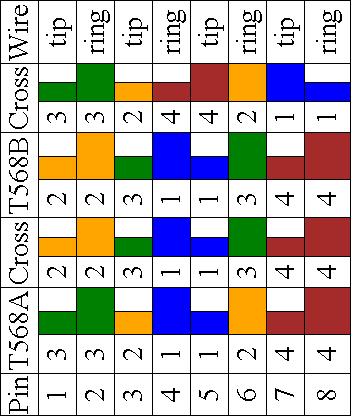

Just pick the size needed for your mobile device. They are rotated to fit screen better. So if you have horizontal screen or your phone doesn’t understand what PNG is I suggest IrfanView for fast correcting those problems. :)

128x160 176x220 240x320 352x416 480x640

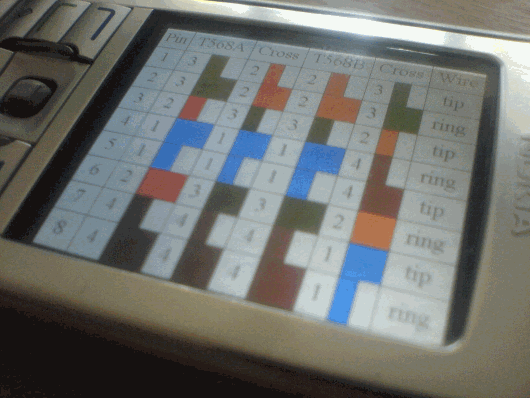

This is how it looks like on my Nokia E60. Geek, isn’t it? :)

nokia_e60_lan_cheatsheet
