Kingston SSDNow V+ SNV225-S2 solid state disk

kingston_icon My system drive had been acting slow lately and way too audible for my taste. And it takes some real effort to make sounds from inside of multi-layered sound dampening enclosure.

So I decided it is time to give SSD a try. Kingston is aggressively targeting consumer market with their Value lineup so it was natural choice. I considered simple model from V lineup but after reading up on it V+ lineup performance seemed worth higher price tag.

So earlier this week I got and installed solid state drive SNV225-S2 model in 64GB capacity.

Package and installation

Kingston offers upgrade bundles for desktops and notebooks, but for this model there was only basic package with drive itself available.

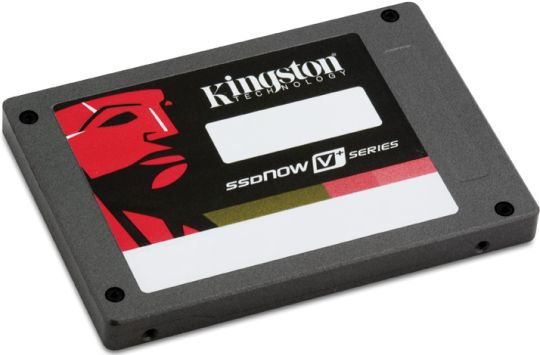

Disk is quite boring brick of metal (no electronics visible like it is common to hard drives). It is identical in size and SATA connectors to 2.5” hard drive but weights less (84 against ~120g for hard drives). For notebooks it is easy drop in replacement.

kingston_snv225s2

kingston_snv225s2

For desktops it is more tricky, because very few cases have mounting slots for 2.5” drives. There are brackets to mount 2.5” drives in 3.5” slots for that, but nothing I could buy right away. Just left it at the bottom of case for now.

I didn’t want to mess with operating system so I cloned my current drive from LiveCD. SSD didn’t want to boot right away, so I also had to run fixmbr from Windows Recovery Console.

Drive supports (more like emulates) SMART, with few error-related parameters reported.

Software adjustments

I had disabled MyDefrag screensaver. Defragmentation is not beneficial and even potentially harmful to SSD. Performance loss from fragmentation is minimal, because there is no mechanics involved and seek times are much shorter than for HDDs.

I also had moved Windows swap file from second physical drive to system drive. It makes sense to keep it on separate drive for hard drives, but for SSD performance gain from SSD itself is larger than from compartmentalizing.

Since I went down a partition I also had to adjust startup entries with Autoruns, re-link Dropbox and re-configure Ketarin and HFS. Other than that most of my software is portable and survived move just fine.

Performance

SSD performance is very tricky topic. They are fundamentally different from hard drives and internals are even further and more abstract from file system. This model claims:

  • 220MB/sec sequential read;
  • 140MB/sec sequential write.

I am not qualified to run serious battery of test (try this review if you look for number crunching), but what can I say so far:

  • boot time is halved, went from 69s to 36s;
  • disk-intensive apps like Firefox and FeedDemon got crazy performance gain, they are much more snappy;
  • no noise of any kind, hard drive noise is extremely hard to eliminate and silent operation is huge advantage of SSDs.

One test I did decide to run is LAN Speed Test to get some simple file system performance numbers:

Test size 1GBWrite, MB/sWrite, sRead, MB/sRead, s
3.5” WD 2500JS39.8425.7041.2724.8
3.5” WD 6400AAKS56.5518.1158.1517.61
2.5” WD 5000BEVT31.5532.4534.9729.28
**SNV225-S2****111.08****9.22****109.95****9.31**

This type of practical benchmark isn’t too precise and speeds aren’t anywhere near theoretical limits. Still even if not pushed to the max, SSD shows massive improvement in both read and write speeds.

Potential issues

By now SSD had solved battery of early performance and data loss issues. But they are still cutting edge tech and lineups are changed very rapidly. SNV225 is not even half year old, but Kingston already lists newer SNV325 models in V+ series.

The one specific issue that gets most of attention is TRIM command, that is only supported in very latest SSD and natively only in Windows 7. SNV225 is one generation to early to support it and so it has potential performance issues in long term when drive gets some usage.

I guess I will have to see for myself in following months.

Overall

Still not mainstream, but is excellent performance booster for a price well in range of power user toys. Very pleased with it and will see how it fares in long term.

Link http://www.kingston.com/press/2009/flash/08a.asp
